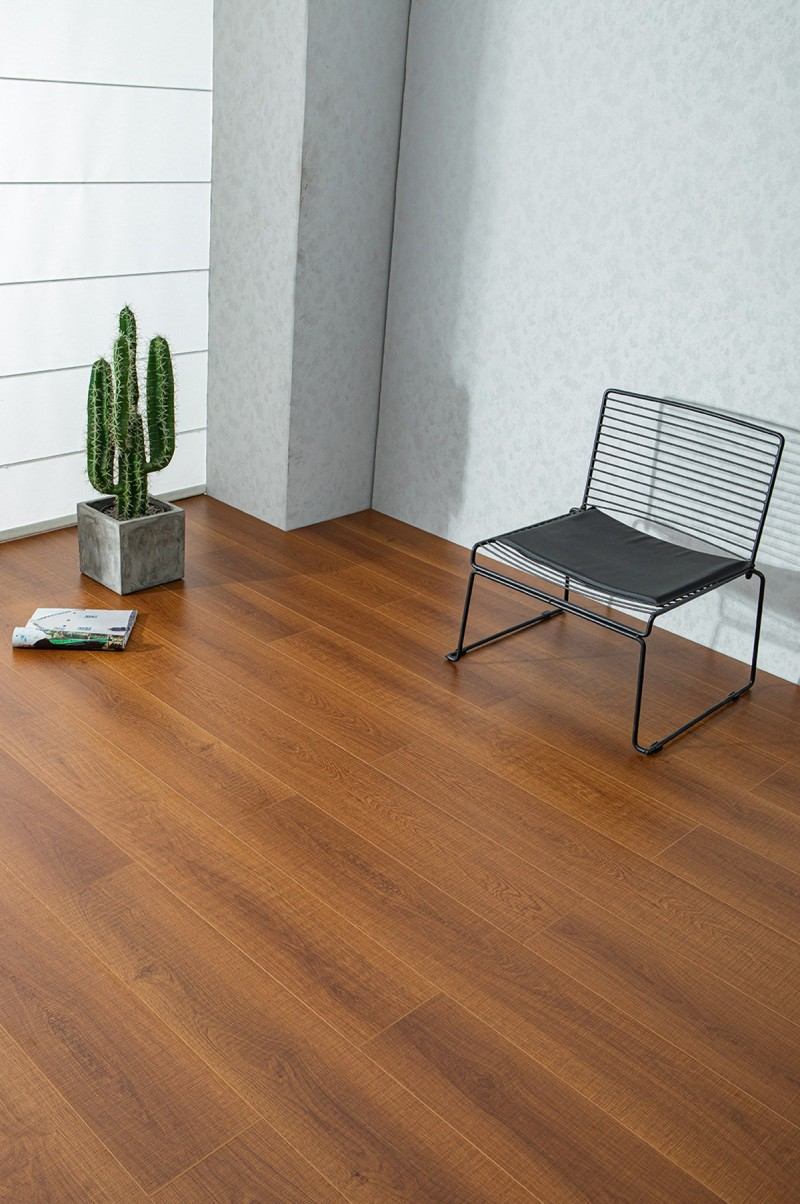

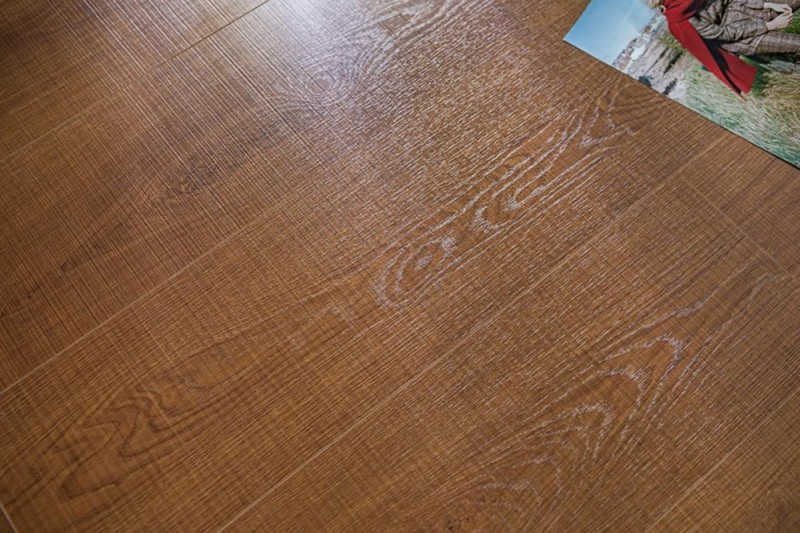

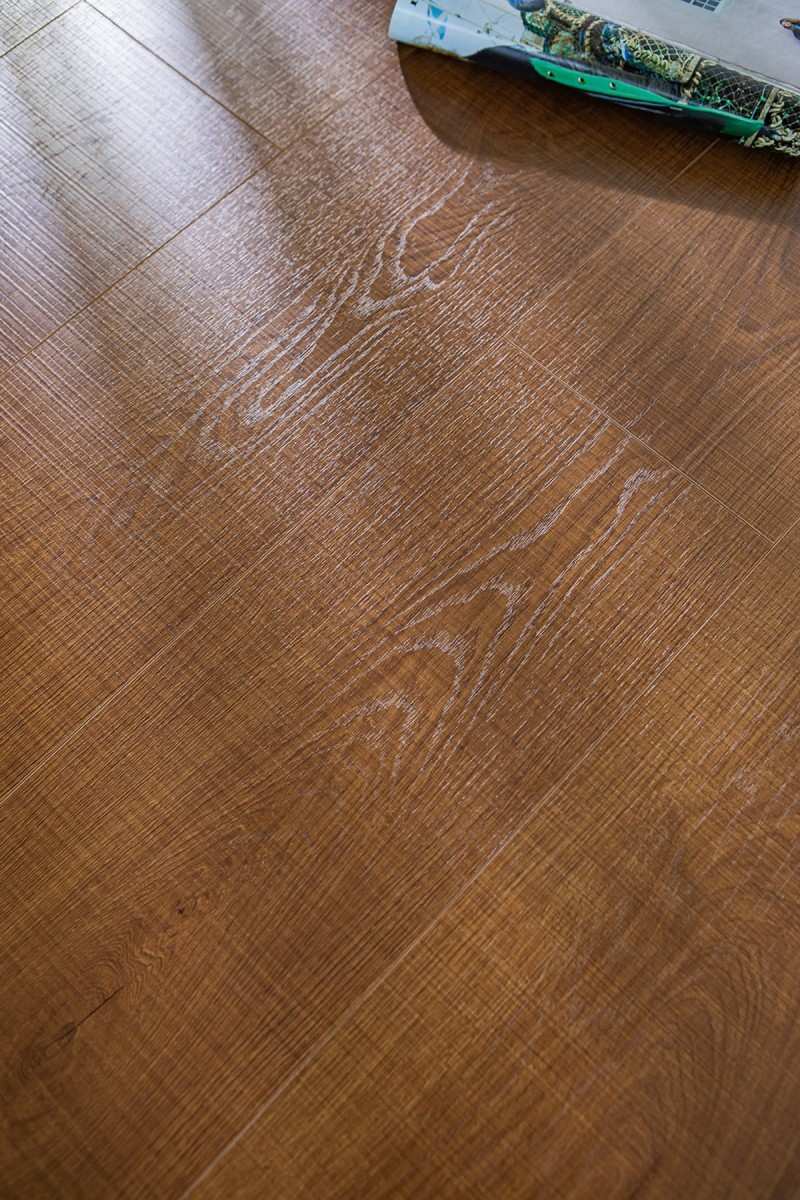

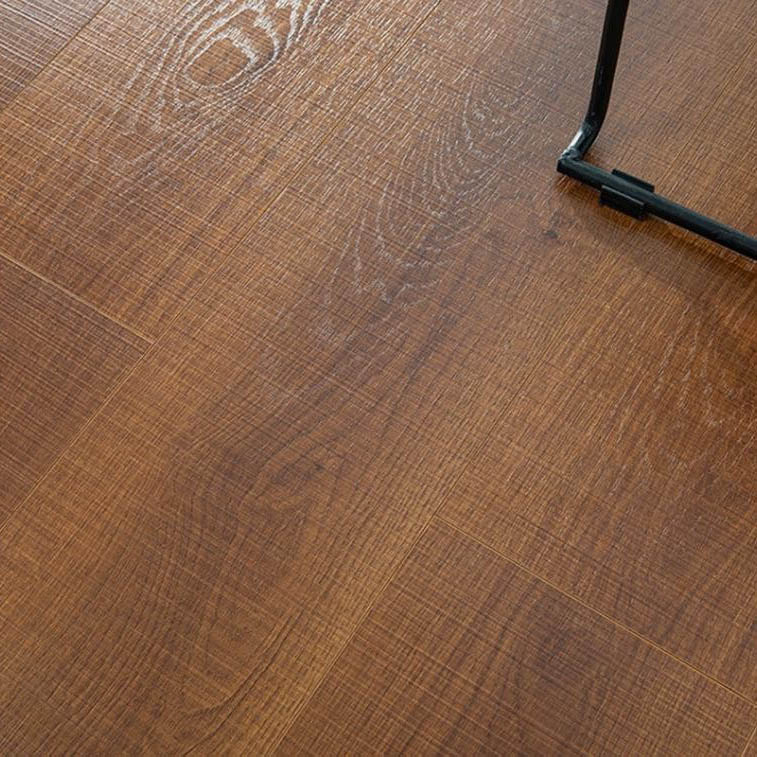

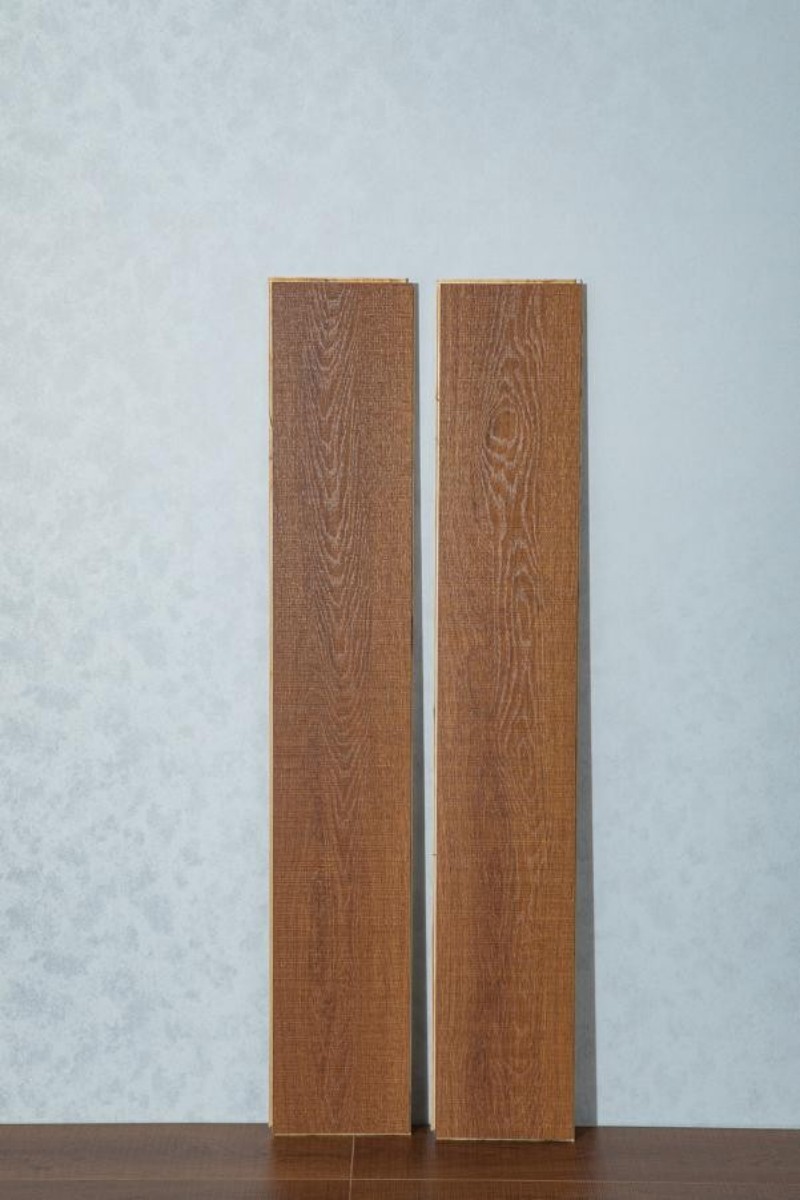

EIR 3D Effect Laminate Flooring consists of five functional layers—UV protective coating, wear-resistant layer, HD decorative film, high-density fiberboard (HDF) core, and balance back layer—this flooring is engineered to replicate the look and feel of natural materials while overcoming their drawbacks (e.g., high cost, poor stability). It excels in wear resistance, dimensional stability, and easy maintenance, making it ideal for high-traffic areas. Whether used in homes, offices, hotels, or public spaces, it provides a realistic, long-lasting, and budget-friendly flooring option that meets both decorative and practical needs.
•Ultimate Realism: EIR technology achieves 99.8% texture-pattern alignment, capturing even the finest details of natural wood (e.g., grain direction, knot texture) and stone. The 3D texturing adds depth, making the flooring visually and tactilely indistinguishable from real natural materials.
•Superior Durability: Equipped with imported melamine wear-resistant layer (AC3 to AC5 grades), EIR 3D Effect Laminate Flooring resists scratches, stains, and heavy foot traffic. AC3 grade suits residential use (≥6000 abrasion cycles), while AC4/AC5 grades are ideal for commercial spaces (≥9000/12000 cycles), with a service life of up to 15 years.
•Enhanced Safety & Eco-Friendliness: The 3D textured surface boosts slip resistance (R10 anti-slip rating), reducing fall risks. It meets E1/E0/Carb P2 environmental standards, with formaldehyde emission ≤0.124mg/m³ (climate chamber test), safe for families with kids and pets.
•Excellent Stability: 0.86g/cm³ high-density HDF core ensures minimal expansion/shrinkage under temperature/humidity changes. It’s geothermal-compatible (meets LY/T 1700-2007), maintaining performance at surface temperatures up to 28℃.

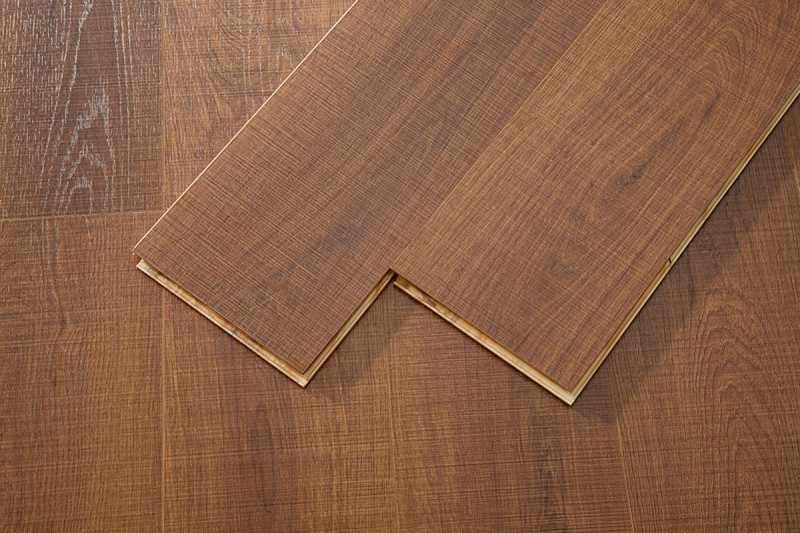

•Tool-Free Installation & Low Maintenance: Features UNILIN/Valinge click-lock system for glue-free, DIY-friendly installation (saves 30% installation time). Daily maintenance only requires sweeping/mopping—no waxing or special treatments.
•Versatile Design Options:EIR 3D Effect Laminate Flooring offers over 100 designs (oak, walnut, marble, abstract) available for high-definition printing. Edge options (V/U/T-groove) enhance the 3D visual effect, matching various decor styles (modern, classic, industrial).
| Item | Specification |
| Base Material | High-Density Fiberboard (HDF), density ＞860-880kg/m³, internal bonding strength ≥1.0Mpa |
| Thickness | 8mm, 10mm, 12mm |
| Standard Size | 1218*19×198mm，1220×200mm, 80 kinds, etc. |
| Wear Resistance Grade | AC3 (Residential, ≥3000 cycles), AC4 (Light Commercial, ≥4000 cycles), AC5 (Heavy Commercial, ≥5000 cycles) |
| Surface Technology | EIR (Embossed in Register) + 3D texturing + UV protective coating (scratch-resistant, anti-yellowing) |
| Locking System | Valinge click-lock system with wax sealing, tensile strength ≥1000N, water-resistant |
| Formaldehyde Emission | ≤0.124mg/m³ (climate chamber method), meets E1/E0/Carb P2 standards |
| Water Absorption Expansion Rate | ≤2.5% (24-hour immersion test) |
| Surface Scratch Resistance | ≥4.0N, no visible damage to decoration layer |
| Static Bending Strength | ≤8mm thickness: ≥35Mpa; ＞8mm thickness: ≥30Mpa |
| Applicable Temperature | -20℃ ~ 60℃; Geothermal-compatible (surface temp ≤28℃) |
The product is widely used in both residential and commercial scenarios due to its excellent performance and aesthetic effect:
•Residential Areas: Living rooms, bedrooms, kitchens, bathrooms (with proper waterproof treatment), balconies, corridors, etc.
•Commercial Areas: Offices, hotels, restaurants, shopping malls, supermarkets, schools, hospitals, exhibition halls, etc.
•Special Scenarios: Geothermal-heated rooms, pet-friendly families, high-traffic public areas, etc.
•Residential Case: California High-End Villa Community: We supplied 12,000㎡ of EIR 3D oak grain laminate flooring for a 50-villa project in Beverly Hills. The flooring’s realistic texture matched the European-style decor, elevating the space’s luxury. After 5 years of use, the surface remains scratch-free and colorfast, with 98% of homeowners satisfied.
•Commercial Case: Berlin Chain Hotel: A leading German hotel chain chose our AC5-grade EIR flooring for 20 properties (total 80,000㎡). It withstands 2,000+ daily visitors for 3 years, with minimal maintenance costs. The hotel’s operation director noted: “It balances durability and aesthetics perfectly.”
•Public Case: Tokyo Primary School: A 10,000㎡ primary school in Tokyo adopted our E0-grade flooring for classrooms and corridors. The anti-slip surface (R10 rating) reduces fall risks, and formaldehyde emission meets Japan’s strict JIS A 5908 standard, ensuring student safety.

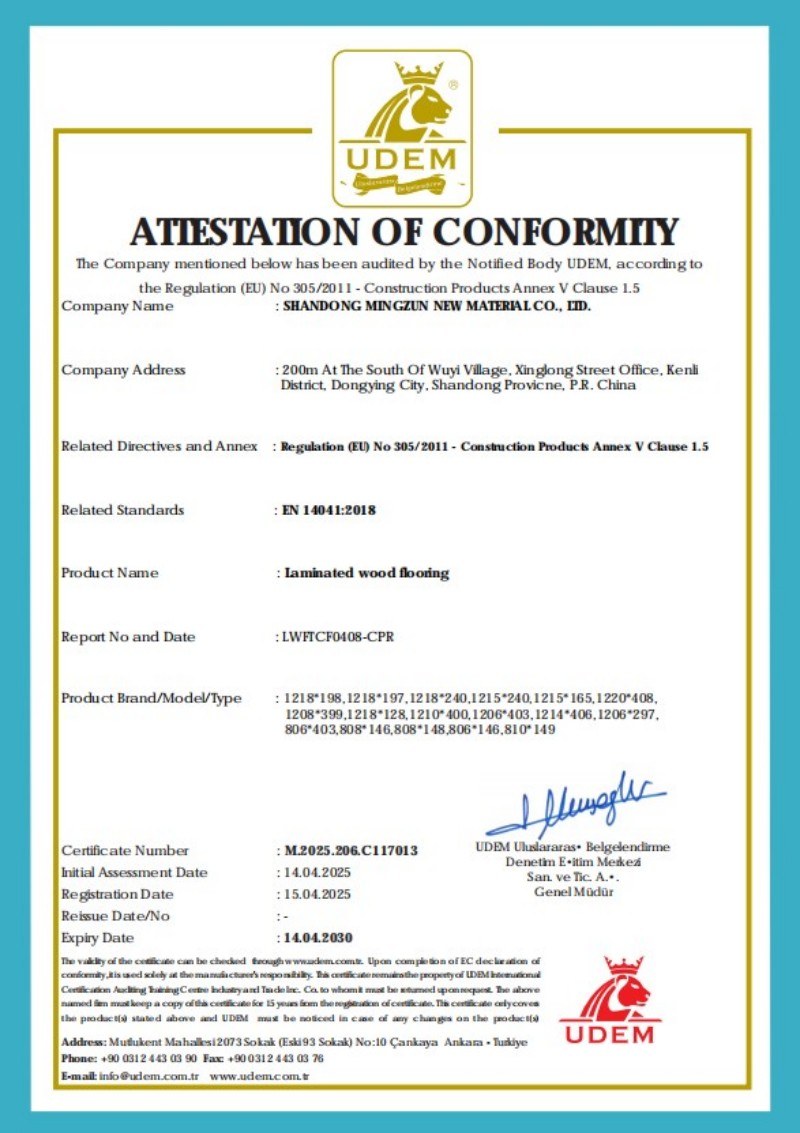

The product has passed a number of international and national authoritative certifications, ensuring its quality and safety:

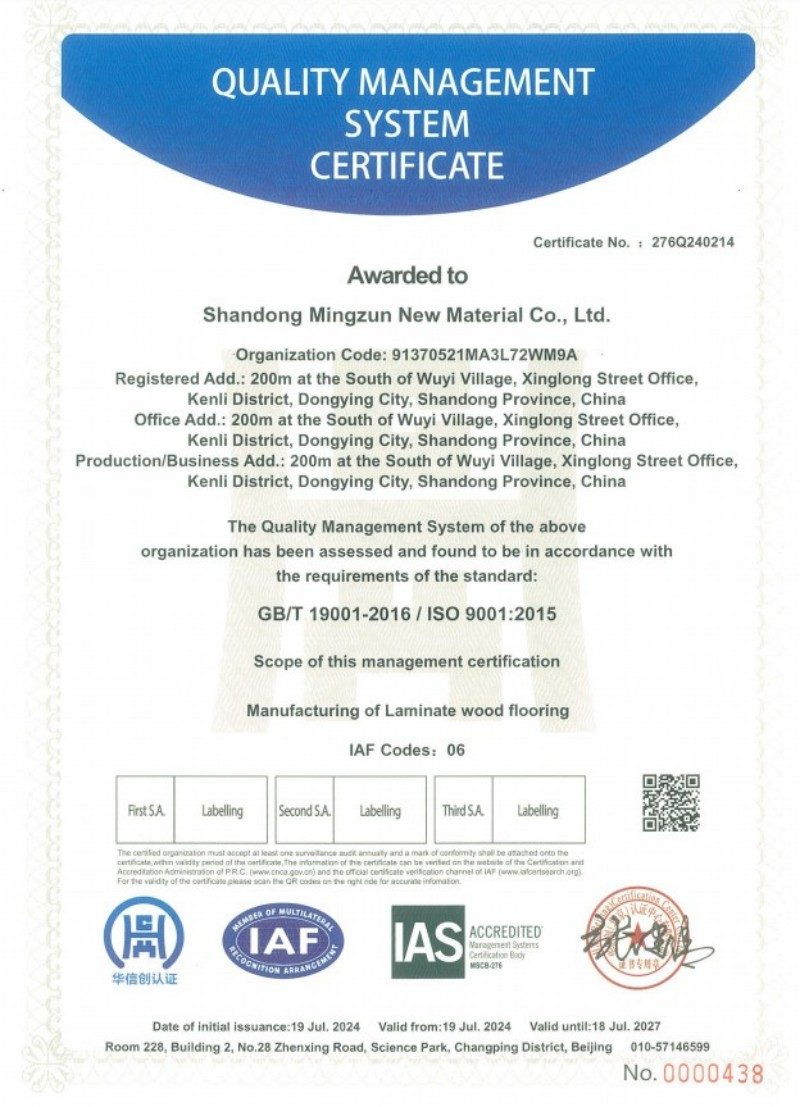

•ISO 9001:2015 Quality Management System Certification (ensures consistent production quality)

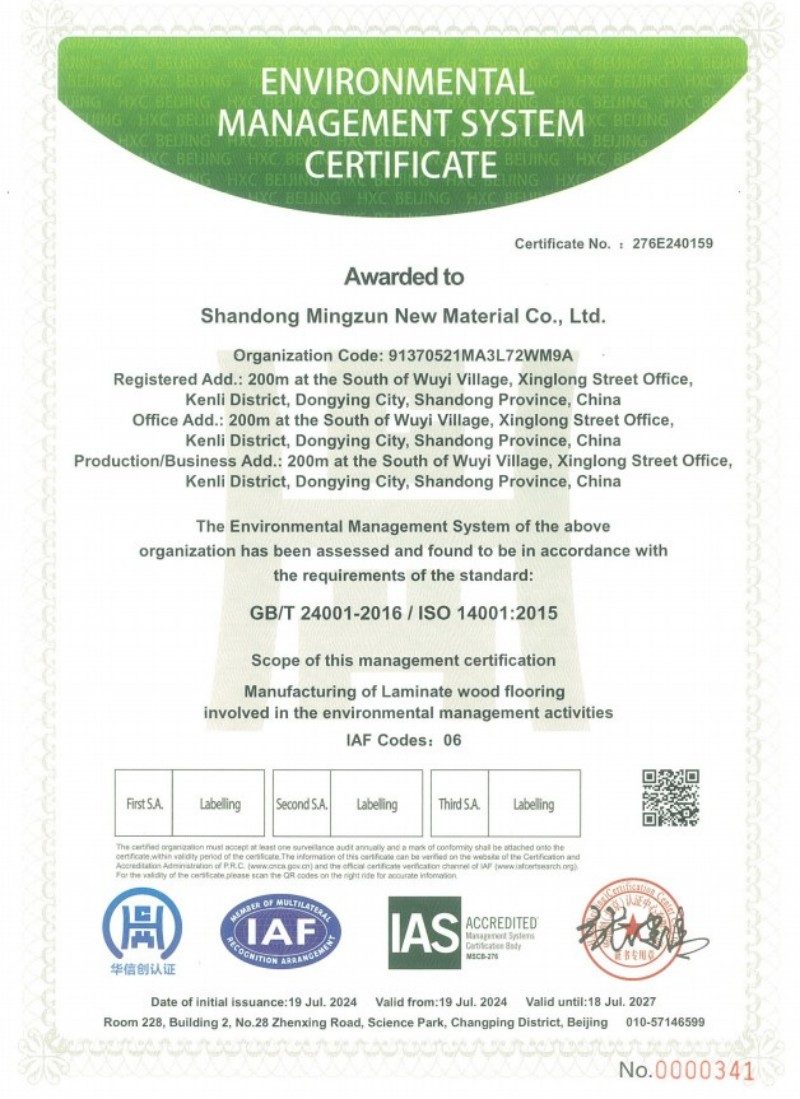

•ISO 14001:2015 Environmental Management System Certification (eco-friendly production process)

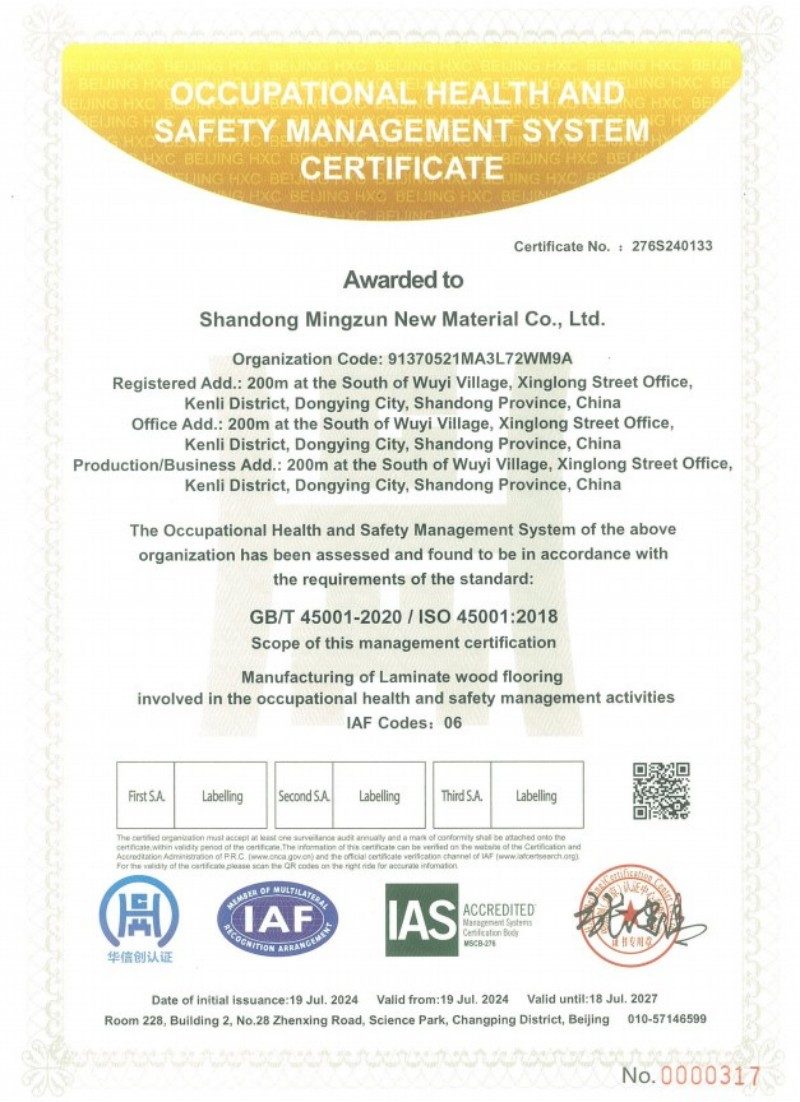

•ISO 45001 Occupational Health and Safety Management System Certification (safe workplace standards)
•CE Certification (complies with EU REACH/RoHS directives, access to European market)
•Fire Rating B1 Certification (national fire safety standard, self-extinguishing, low smoke emission)
We implement strict quality control throughout the production process:
•Raw Material Inspection: Strictly inspect the HDF base material, wear-resistant layer, decorative film, and other raw materials to ensure they meet the technical requirements.
•In-Process Quality Control: Monitor the temperature, pressure, and time of the hot-pressing process in real time to ensure the EIR texture is accurately aligned with the pattern. Conduct random inspections on the locking strength and surface flatness of semi-finished products.
•Finished Product Testing: Each batch of products undergoes sampling testing, including wear resistance, formaldehyde emission, water absorption expansion rate, and other key indicators, and only products that pass all tests can leave the factory.
| Comparison Item | Our EIR 3D Laminate Flooring | Peer Products |
| EIR Technology Precision | High-precision infrared positioning, 99.8% texture-pattern alignment, no deviation | Basic mechanical positioning, ≤95% alignment, visible texture-pattern mismatch |
| Wear-Resistant Layer | Imported melamine, AC3-AC5 grades available, 10-15 years service life | Domestic common layer, mostly AC3 grade, 5-8 years service life |
| Environmental Standard | E0/Carb P2/FloorScore certified, formaldehyde ≤0.124mg/m³ | Basic E1 compliance, some low-cost models exceed emission limits |
| Locking System | Upgraded wax-sealed click-lock, ≥1000N tensile strength, water-resistant | Standard click-lock, no wax sealing, prone to deformation/seepage |
| Customization Capability | 6-15mm thickness, custom sizes/patterns/edges, MOQ 2600㎡, 30-45 days lead time | Limited to standard sizes/thicknesses, high MOQ (≥5000㎡), 60+ days lead time |
| Quality Control | 3-inspection system (raw material → in-process → finished product) + traceability system | Only finished product inspection, no traceability for defective batches |
•Professional Production Experience: We have 15 years of experience in laminate flooring production, focusing on EIR 3D effect technology for 8 years, with a professional R&D team and advanced production equipment.
•Strict Quality Control: Implement the "three-inspection system" (raw material inspection, in-process inspection, finished product inspection), and establish a complete quality traceability system.
•Cost-Effective Pricing: Relying on large-scale raw material procurement and automated production lines, we reduce production costs while ensuring quality, providing customers with competitive prices.
•Global Service Network: Products are exported to more than 50 countries and regions, with professional after-sales teams in Europe, North America, and Asia to provide timely services.
•Continuous Innovation: Invest 8% of annual sales in R&D, continuously optimize product performance and design, and launch new products every quarter.
•Installation Guidance: ① HD installation videos (substrate preparation, locking, edge trimming) available on our official website, YouTube channel, and WeChat official account. ② Printed manuals (with step-by-step illustrations) included in each carton.
③ On-site guidance by certified technicians for orders over 5000㎡ (free within 50km of major cities).
•Usage & Maintenance Manual: Detailed guide covering daily cleaning (recommended cleaners/tools), furniture placement (anti-slip pad requirements), scratch/stain repair, and geothermal use precautions—attached to each order.
•After-Sales Hotline: 24/7 multilingual support (English, German, Japanese, Chinese) via phone and online chat. Response time ≤2 hours for general inquiries, ≤24 hours for on-site service requests.
Provide a detailed usage and maintenance manual, including daily cleaning methods (avoid using corrosive cleaners), precautions for furniture placement (use anti-slip pads), treatment methods for surface scratches and stains, etc.
•Establish a 24/7 after-sales service hotline and online customer service to answer customer questions in a timely manner.
•For product quality problems within the warranty period, provide free replacement or repair services.
•Provide lifelong maintenance consultation services, and charge reasonable costs for maintenance beyond the warranty period.
•Outer Packaging: Use high-strength corrugated cartons, with a moisture-proof layer inside. Each carton is marked with product model, specification, quantity, weight, and fragile warning signs. The packaging can bear a stacking pressure of ≥500kg. •Customized Packaging: Support customized packaging with customer logos, brand information, and other content according to customer requirements.
•Delivery Time: For standard products, the delivery time is 15 working days; for customized products, the delivery time is 30-45 working days.
•Shipping Methods: Support sea freight, air freight, and land transportation. The nearest port (such as Shanghai, Ningbo) can be selected for sea freight; for urgent orders, air freight can be chosen.
•Shipping Documents: Provide complete shipping documents, including commercial invoice, packing list, bill of lading, certificate of origin, and certification documents (as required by customers).
•Transportation Insurance: Purchase transportation insurance for each batch of products to ensure that customers can get compensation in case of product damage during transportation.
•North America: Supplied 50,000㎡ of EIR 3D walnut flooring for a luxury apartment project in Manhattan, New York. The project developer (a Fortune 500 real estate firm) praised our on-time delivery (15 days ahead of schedule) and consistent quality.
•Europe: Long-term partner of Accor Hotels (France). We’ve provided 80,000㎡ of AC5-grade flooring for 20 of their ibis and Novotel properties across Germany, France, and Italy since 2020.
•Asia: Participated in the flooring renovation of Singapore’s Jurong Point Mall (30,000㎡ AC5-grade flooring). The mall’s management noted: “It withstands 100,000+ daily visitors with no visible wear after 2 years.”
Well-known hotel chains: Marriott, Hilton; Home furnishing retailers: IKEA, Home Depot; Real estate developers: Vanke, Evergrande (for reference only, actual cooperation shall be subject to official confirmation).
Q1: Can it be installed in bathrooms or kitchens?
A1: Yes, for dry areas of kitchens/bathrooms (e.g., vanity areas). Ensure the substrate is fully waterproofed, and install a waterproof strip at doorways. Avoid long-term water immersion (e.g., shower areas).
Q2: Is it suitable for geothermal systems?
A2: Absolutely. It meets LY/T 1700-2007 (geothermal wood flooring standard) with good thermal conductivity. Keep the surface temperature ≤28℃ for optimal performance; no extra maintenance is needed.
Q3: What’s the service life under heavy commercial use?
A3: AC5-grade flooring lasts 8-12 years in high-traffic areas (e.g., malls, hotels) with proper maintenance. AC4-grade works for light commercial spaces (e.g., offices) for 10-15 years.
Q4: How to repair surface scratches?
A4: For minor scratches (≤0.5mm), use our matching color repair pen (provided free with bulk orders). For deep scratches, replace the damaged plank—our click-lock system allows easy single-plank replacement.
Q5: Do I need a moisture barrier pad?
A5: Yes, it’s mandatory. The pad prevents ground moisture from damaging the flooring, reduces walking noise by 30%, and enhances comfort. We offer custom-cut pads (free for orders over 1000㎡).
Q6: How does EIR 3D differ from regular embossed flooring?
A6: EIR 3D’s texture aligns perfectly with printed patterns (e.g., a knot’s texture matches its shape). Regular embossing uses a generic texture unrelated to patterns, resulting in a fake, flat look.
Q7: Can it be installed over existing flooring?
A7: Yes, if the existing floor (e.g., tile, vinyl) is flat (≤2mm unevenness per 2m), clean, and dry. No need to remove old flooring—saves time and cost.
•Customization Scope: ① Thickness: 7-12mm. ② Size: Customizable (max 2400×300mm). ③ Pattern: HD printing based on customer’s images/samples (wood, stone, abstract, etc.). ④ Surface effect: Matte, semi-matte, high-gloss. ⑤ Edge design: V-shape (0.5-2mm), U-shape, T-shape. ⑥ Logo printing: Custom logos on the back layer (free for orders ≥5000㎡).
•Customization Process: 1. Customer provides requirements (specs, patterns, quantity) → 2. We send design drafts/quotations within 2 working days → 3. Customer confirms and pays 30% deposit → 4. Sample production (7-10 days) and confirmation → 5. Bulk production (23-35 days) → 6. Quality inspection → 7. Balance payment → 8. Delivery. ⑦ Progress updates: We send weekly production photos/videos to customers.
•Minimum Order Quantity (MOQ): 2600㎡ for customized products. For repeat customers, MOQ can be reduced to 1500㎡.
1.Raw Material Preparation: Select HDF core (density ≥0.86g/cm³), imported wear-resistant paper, and HD decorative film. All materials pass ISO 9001 inspection (e.g., HDF moisture content 6-10%).
2.Pattern Design & Plate Making: Design patterns via HD scanning/creation. Make high-precision EIR steel plates (error ≤0.1mm) to ensure texture-pattern alignment.
3.Lamination: Stack layers in order (balance layer → HDF core → decorative film → wear-resistant layer → UV coating) and feed into the hot-pressing machine.
4.Hot Pressing & EIR Embossing: Press at 180-200℃, 20-30MPa for 30-60 seconds. The EIR steel plate embosses 3D texture while bonding layers tightly (bonding strength ≥1.0Mpa).
5.Cutting & Edge Processing: Cut large boards into custom sizes via CNC cutting machines (precision ≤0.5mm). Process edges into V/U/T-shapes and polish for smoothness.
6.Locking Processing: Machine click-lock grooves on edges, then apply wax sealing (waterproofing layer) to prevent moisture intrusion.
7.Surface UV Coating: Apply 3-5 layers of UV coating (scratch-resistant, anti-yellowing) and cure via UV light (hardness ≥3H).
8.Quality Inspection: 100% visual inspection (surface defects, size) + random sampling (wear resistance, formaldehyde, locking strength). Defective products are discarded (rejection rate ≤0.5%).
9.Packaging & Storage: Wrap each plank in PE film, pack into moisture-proof corrugated cartons (marked with specs/quantity). Store in dry warehouses (humidity 40-60%) to avoid deformation.
